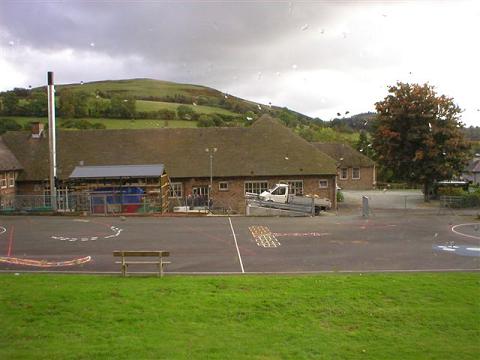

LLANWDDYN SCHOOL AND COMMUNITY BIOMASS HEATING

Mid Wales Energy Agency
Unit 7, Dyfi Eco Parc, Machynlleth, Powys, SY20 8AX · Tel: 01654 703064 · Fax: 01654 703117
Web address: www.mwea.org.uk · Email: [email protected]

Dulas Wood Energy Ltd.
Unit 1, Dyfi Eco Parc,, Machynlleth, Powys, SY20 8AX · Tel: 01654 705000 · Fax: 01654 703000
Web address: www.renewable-resources.com · Email: [email protected]


In 2000 Powys Energy Agency were consulted on replacing the boiler to heat Ysgol Vyrnwy, Montgomeryshire. From this, the school, Powys Energy Agency, Powys County Council, Severn Trent Water, Forestry Commission and community representatives have developed a first- for-Wales community wood-heating project.

After realising that the school and community centre could be heated with locally sourced wood-fuel the possibility for a community heating system was explored. A feasibility study, funded by the Energy Savings Trust showed this to be viable.

Following two years of project development the tender process and Energy Supply Company selection took place between December 2002 and March 2003. The boiler was installed in August 2003 and commissioned in November 2003. The school and community centre now receive heat from the 520kW Compte wood-chip, remote-automated boiler. The houses will connect to the boiler following heat-main installation in summer 2004. Hot water will continue to be available in the summer when there is little demand for space-heating. There is a 350kW back up oil boiler. The project has also stimulated installation of insulation and replacement of the school and community centre radiator systems, which were well managed but inefficient.

The project has also only developed with the willingness of local residents and encouragement and support of the funding bodies - Objective 2, Powys County Council Local Regeneration Fund, Energy Savings Trust Community Energy Programme, Severn Trent Water, National Assembly for Wales, Welsh Development Agency and the Home Energy Efficiency Scheme.

Emissions are well below UK legislative standards and the only visual sign (apart from the boiler buildings) is a heat shimmer and white plume of water vapour at start-up or adding of wood-chip. The wood fuel is sourced (60% minimum sourced) within a 20 mile radius of Llanwddyn, encouraging local supply. This is chipped and stored around a quarter of a mile from the boiler itself. Forest Enterprise donated 200 tonnes of local wood for the first year.

The system is owned by Powys County Council and Powys Energy Agency. It was installed, and is now operated and maintained by Dulas Wood Energy Ltd.
